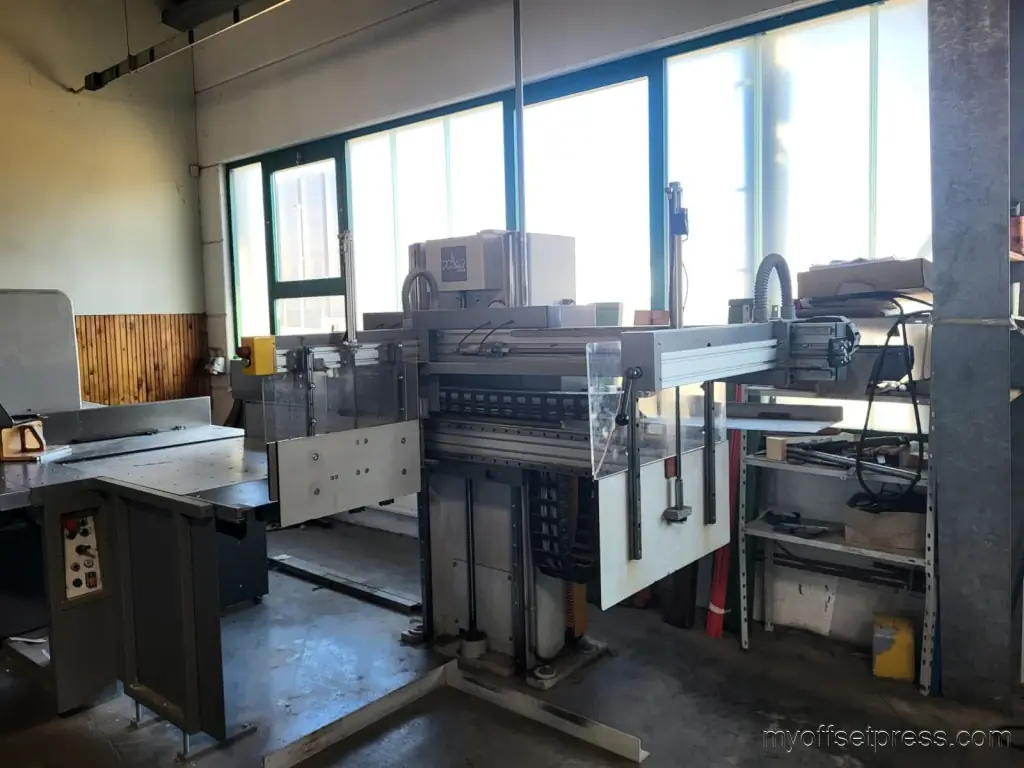

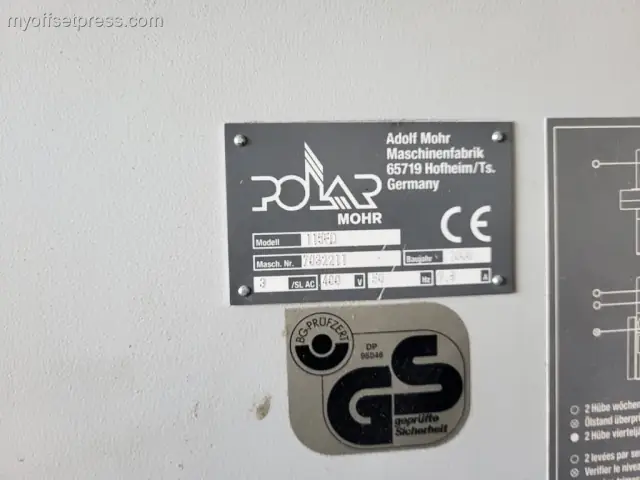

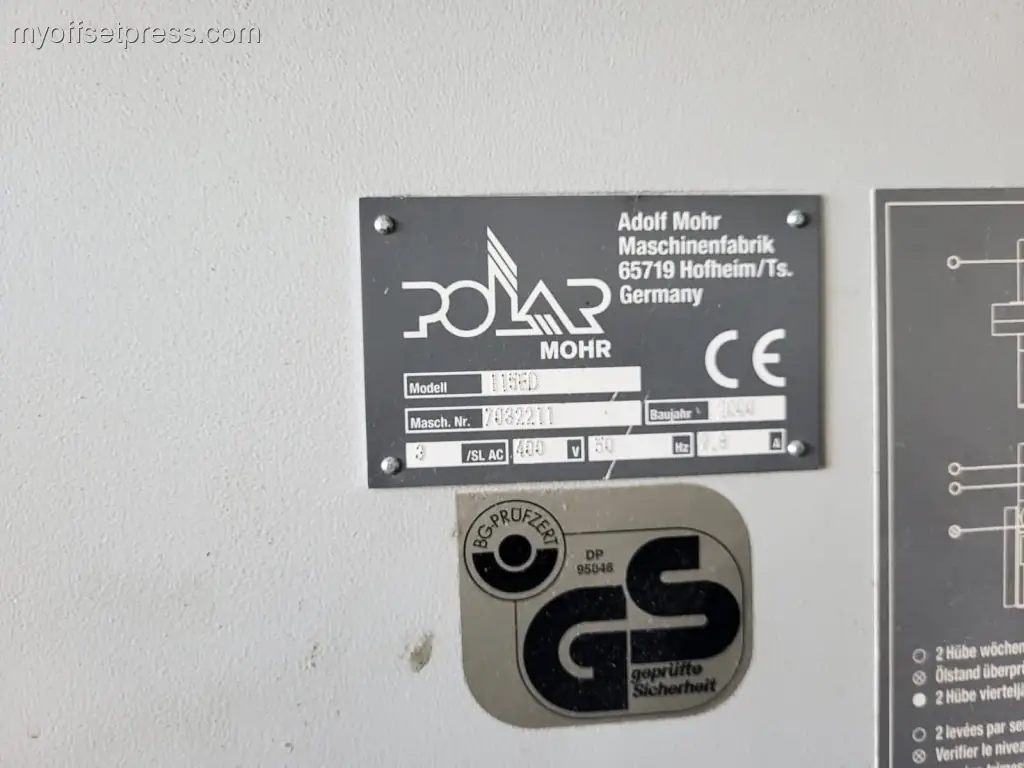

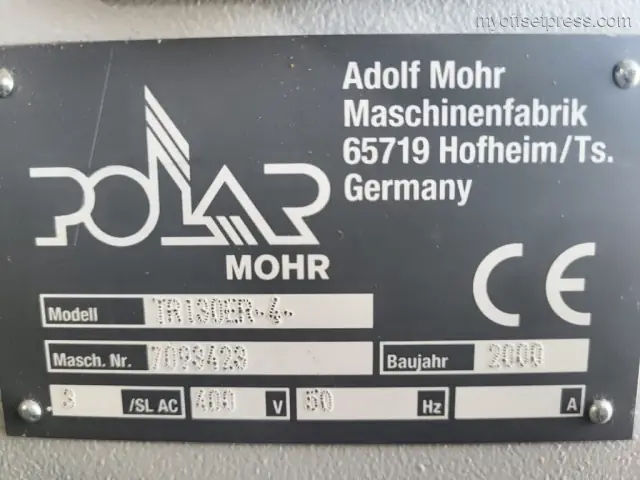

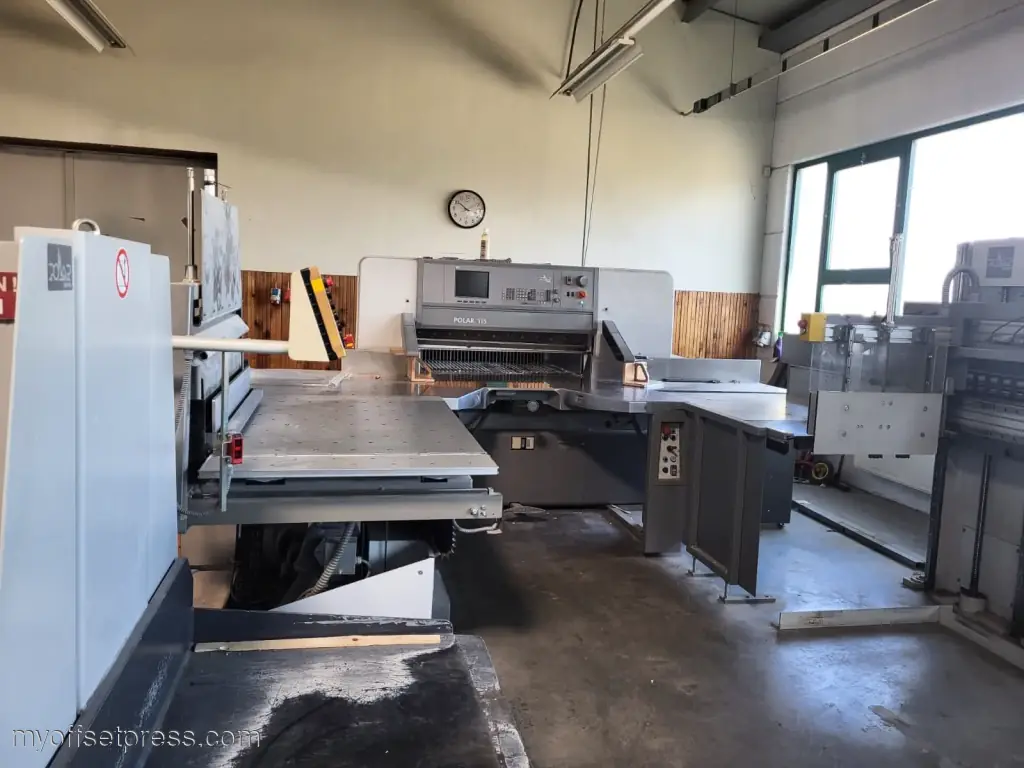

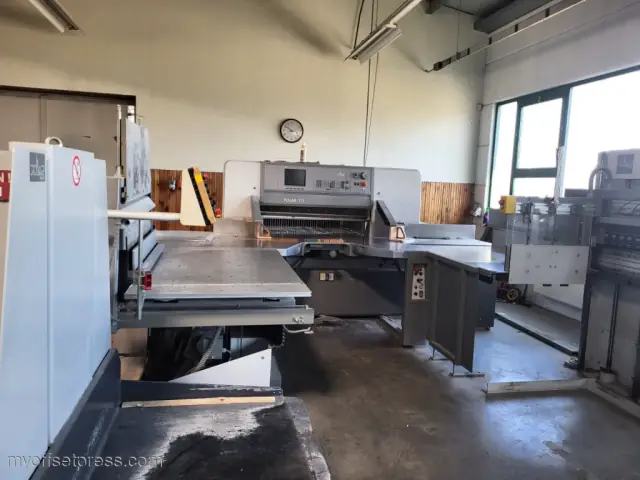

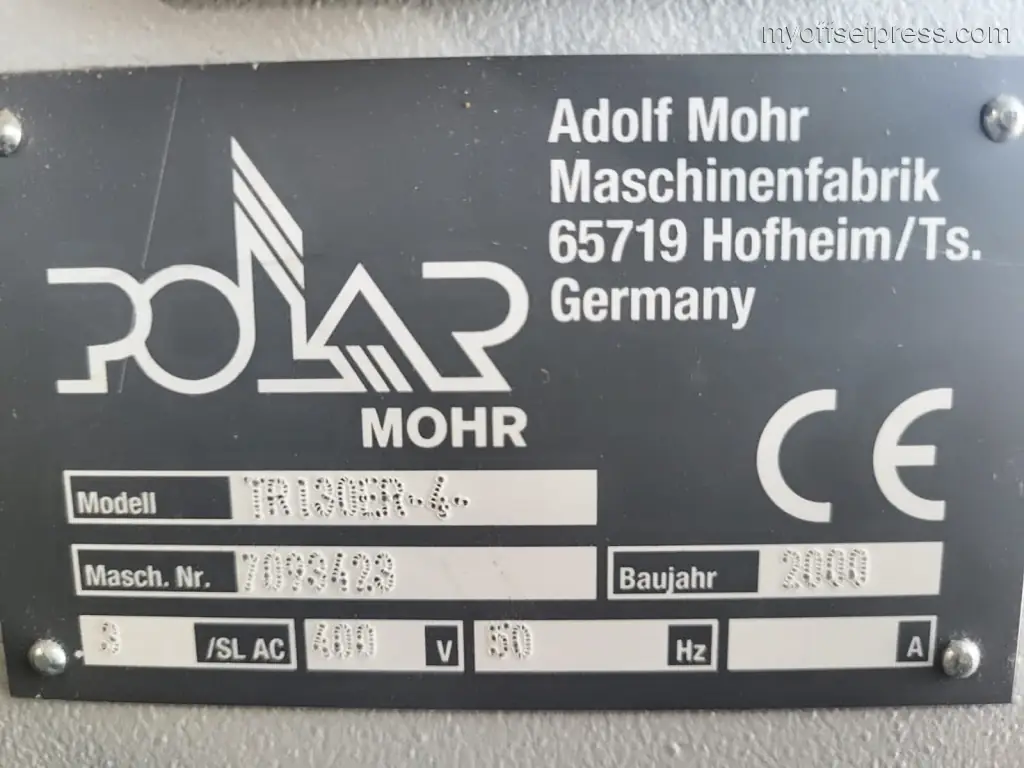

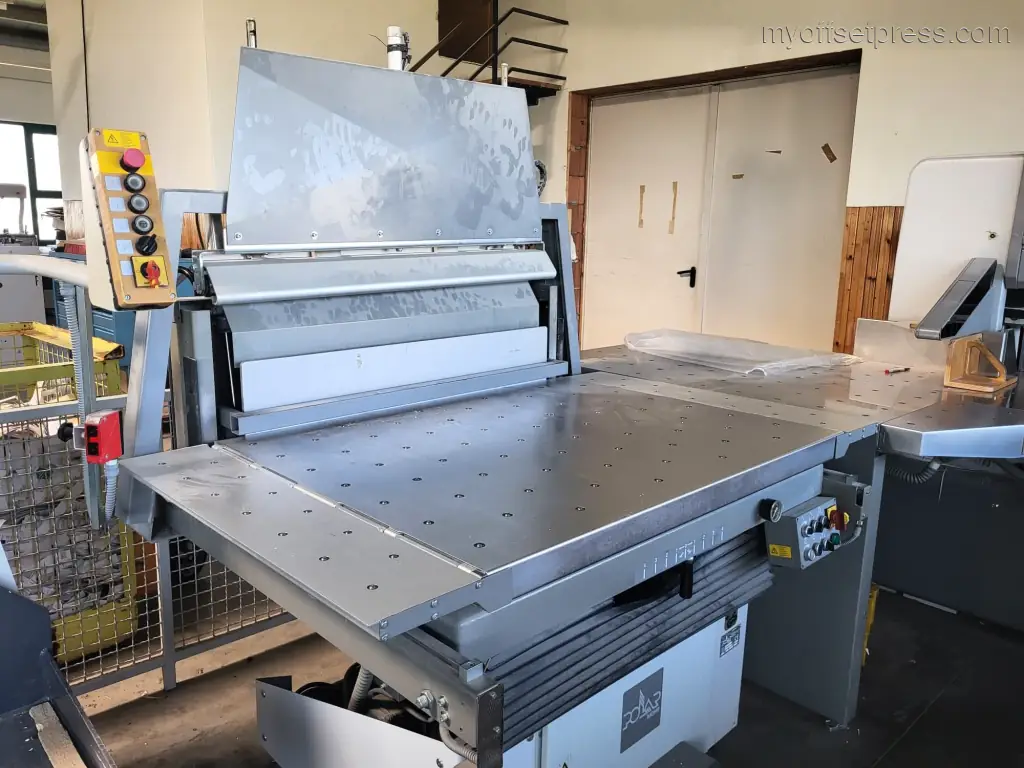

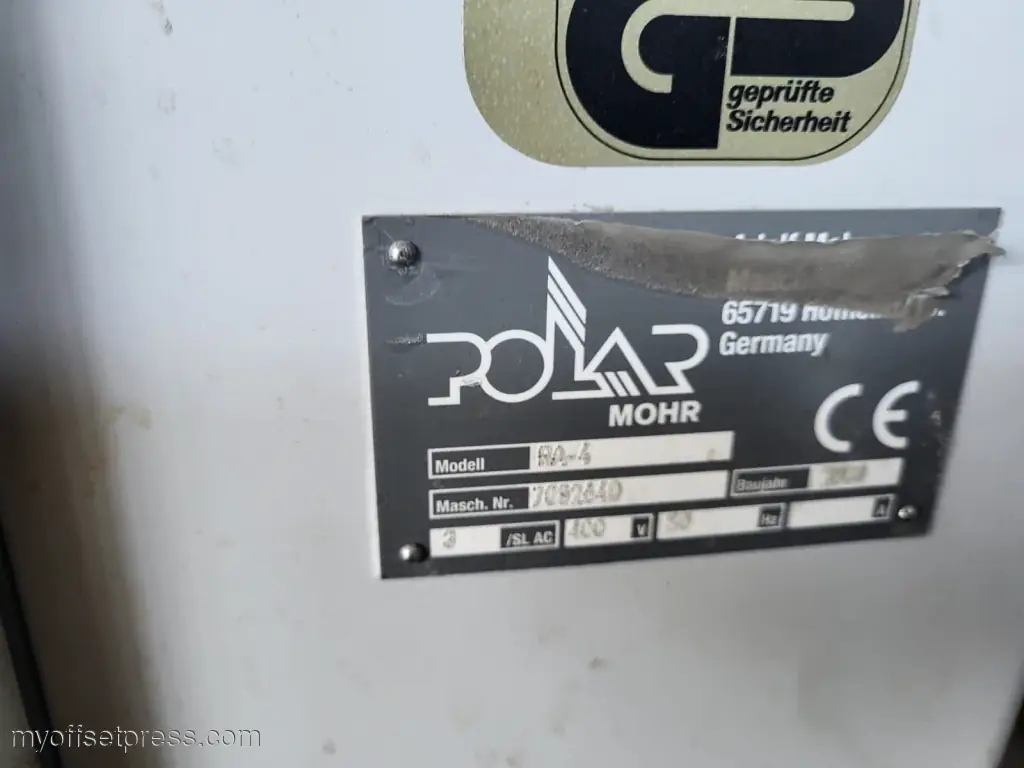

Complete Cutting Line Overview:- Components:- Polar 115 ED (Year 2000)- Polar RA-4 (Year 2000)- Polar TR130ER-4 (Year 2000)- Polar LW 1000-4(Year 2000)- Line Features:- Automatic jogging, cutting, stacking, and lifting- Fully automated workflow for maximum efficiency- Reduced manpower and improved ergonomicsIndividual Units:1. Polar 115 ED (Year 2000):- Max. cutting width: 1,150 mm- Max. pile height: 165 mm- Table height: 900 mm- Dimensions (L × W × H): approx. 2,650 × 2,540 × 1,650 mm- Weight: approx. 3,200 kg- Features:- Color display with programmable control- Air table for smooth material handling- Safety light barriers- Hydraulic clamping- Two-hand operation for blade safety2. Polar RA-4 (Year 2000):- Max. format: up to 75 × 105 cm- Functions:- Automatic jogging and alignment of paper piles- Air roller for removing trapped air between sheets- Features:- Improved stacking quality- Ergonomic working height3. Polar TR130ER-4 (Year 2000):- Max. format: up to 75 × 105 cm- Functions:- Automatic stacking of trimmed layers onto pallets- Can be integrated with cutting process for time saving- Features: High edge precision with movable pallet tip- Reduces production costs significantly4. Polar LW 1000-4:

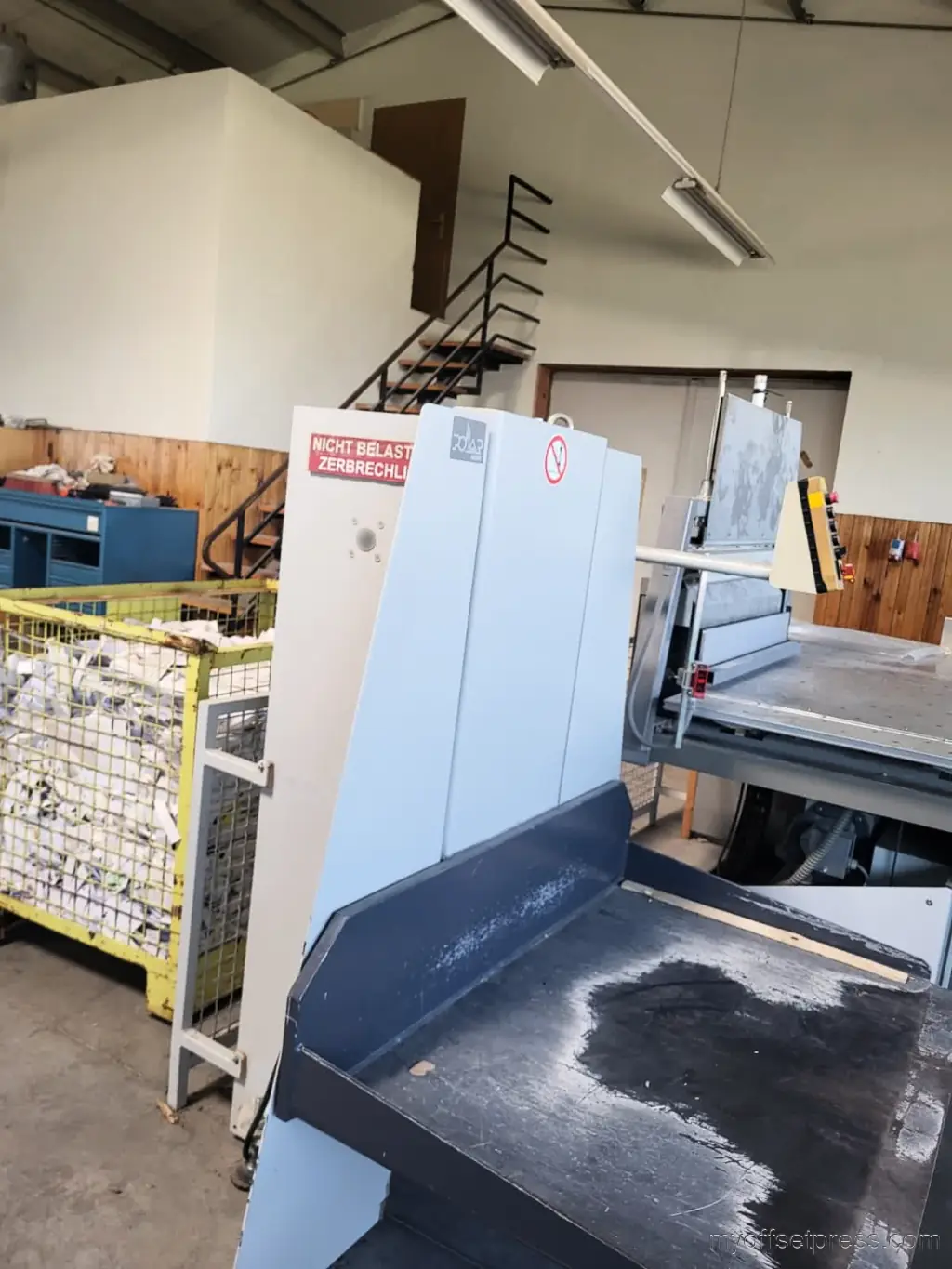

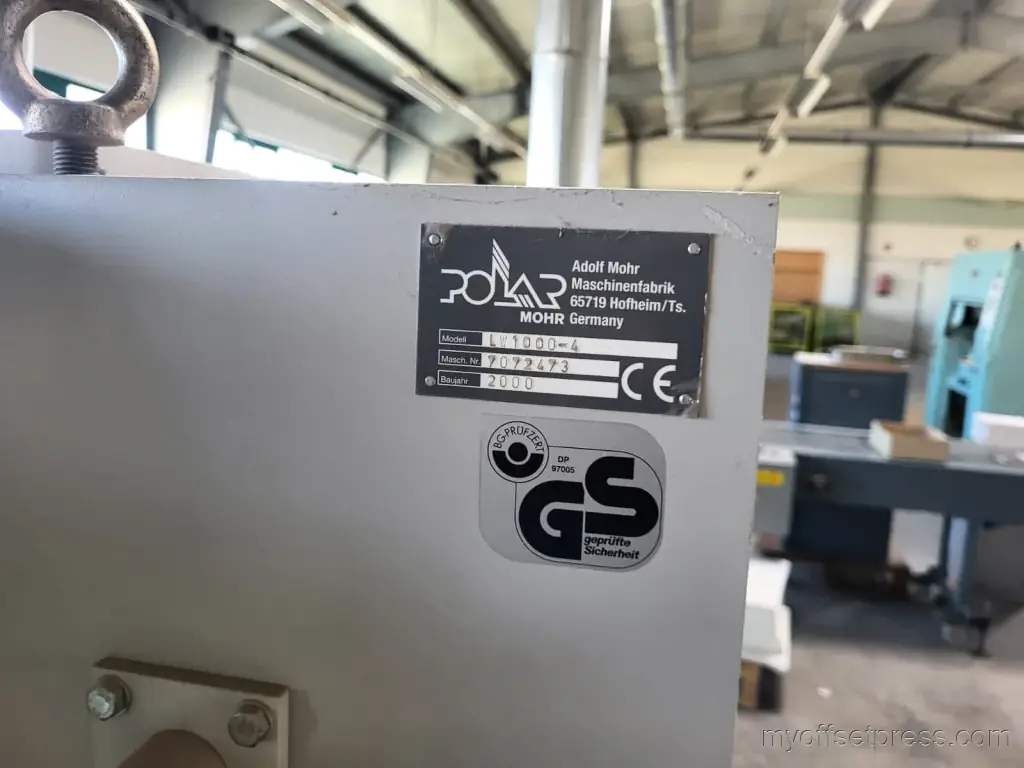

4. Polar LW 1000-4:- Max. pallet size: 800 × 1,200 mm- Platform size: 840 × 1,270 mm- Max. lifting height: 850 mm- Load capacity: 1,000 kg- Power consumption: 0.75 kW- Dimensions (L × W × H): approx. 1,300 × 1,440 × 1,500 mm- Weight: approx. 550 kg- Features:- Automatic lifting/lowering of paper piles- Enhances operator ergonomics- Increases cutting workflow efficiency
